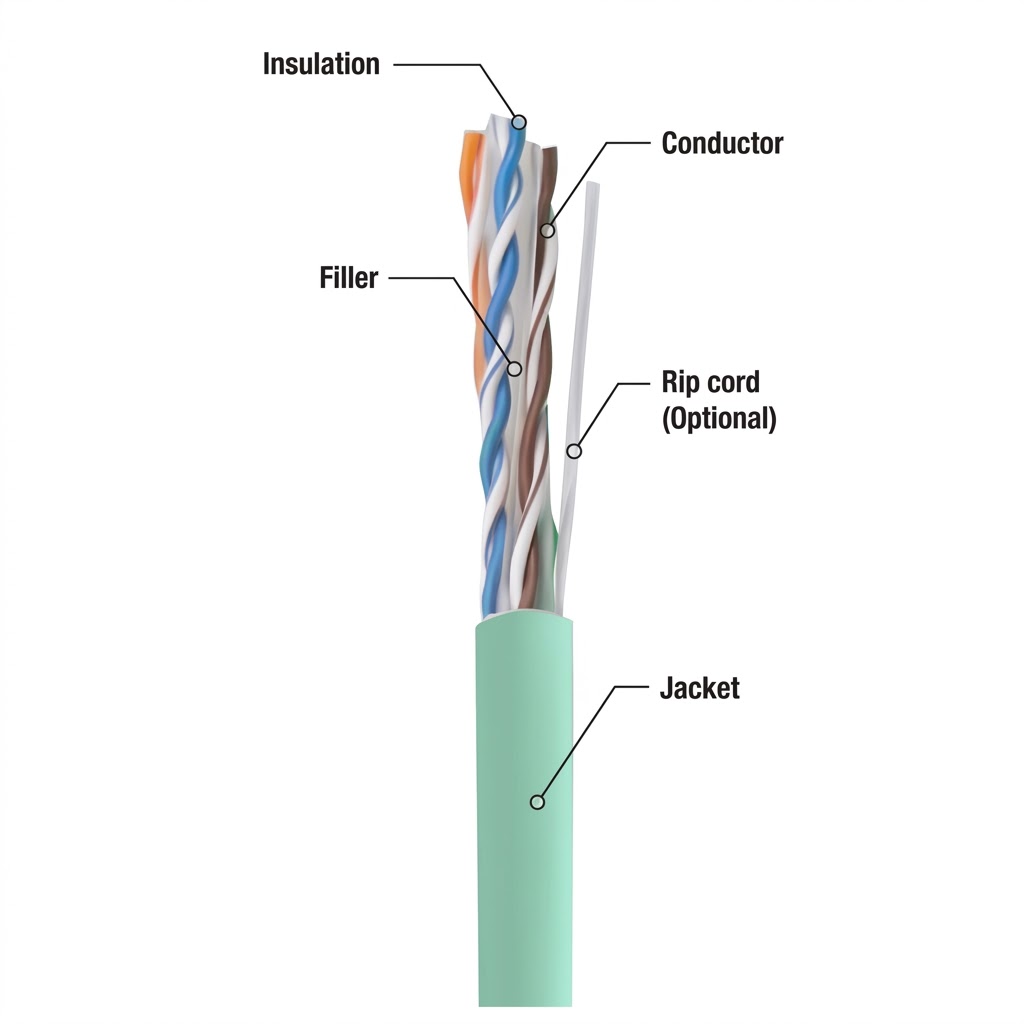

DTC Cable U/UTP Category 6A Green 23 AWG

DESCRIPTION

Rated temperature : 75°C
Reference standard : UL444, ANSI/TIA-568.2-C
Product certification : ISO/IEC 11801,IEC 61156-5
Conductor : Solid Bare Copper
Colour-coded : Green
Isulation : PE insulation
Jacket : PVC

Construction

U/FTP

Number of Pairs

4 Pairs

Conductor Gauge ( AWG )

23 AWG

Conductor Material

Solid Bare Copper

Conductor dimension

0.570 ± 0.005mm

Isulation material

HDPE

Isulation dimension

1.18 ± 0.5mm

Number colour

White Blue / Blue, White Orange / Orange, White Green / Green, White Brown / Brown

Twisting lay length

≤ 30 mm

Cabling lay length

≤ 200 mm

Individual shield & material

Al-Foil

Primary overall shield & material

Secondary overall shield & material

Shield coverage approx

Drain wire

Tinned Bare Copper

Filler Material

Cross PE

Jacket Material

PVC

Overall nominal dimension

6.40 ± 0.30 mm

Jacket rip cord

Optional

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000 Base-T

1000 Base-TX

155 Mbps ATM

622 Mbps ATM

10 Gb Ethernet
