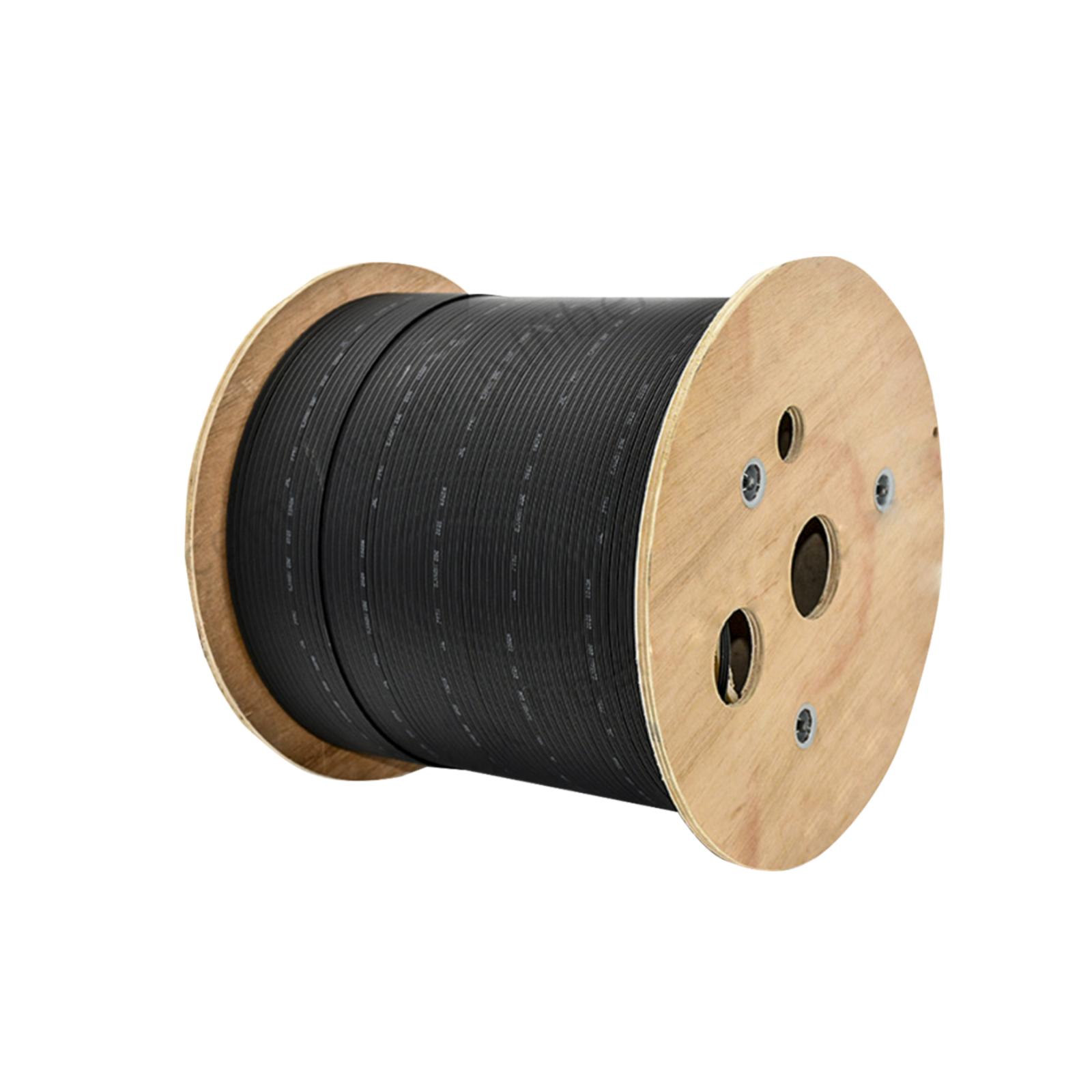

Drop Cable 1 Core G.657.A2 With Messenger
Description
Joining between indoor and outdoor optical fiber cable and residential building, connecting with the equipment. Small structure size, lightweight, available for cabling in the plot. Figure 8 structure, unique concave groove design for excellent peeling property
Application
Drop
Environment
Indoor & Outdoor
All dry core structure
for convenient and quick construction.
Fiber Count
1 Core
Fiber Core
Singlemode G.657.A2
Jacket
LSZH
Messenger
Un-Glue Steel
Min. bending radius for installation (Static)
10 x cable diameter
Min. bending radius for installation (Dynamic)
20 x cable diameter
Operating Temperature
(-40°C) - (+60°C)
Installation Temperature
(-10°C) - (+60°C)
Storage Temperature
(-40°C) - (+60°C)
Mode field diameter (1310nm)
8.6 µm ± 0.4 µm
Mode field diameter (1550nm)
9.6 µm ± 0.5 um
Cladding diameter
125 um ± 0.7 um
Cladding non-circularity
≤1.0%
The cut-off wavelength of cabled fiber
≤1260 nm
Attenuation at 1310nm
≤ 0.36 dB/ km
Attenuation at 1550nma
≤0. 22 db/km
Bending loss at 1550 nm (1 turn, 10mm radius)
≤0.1 db
Bending loss at 1625 nm (1 turn, 10mm radius)
≤0.2 db
Dispersion in the range 1288 to 1339 nm
≤ 3.5 ps/nm.km
Dispersion at 1550 nma
≤ 18 ps/nm.km
